Low Noise 300KW 330KW 410KVA Open Type Diesel Genset for Hospital/Data Center/Commercial Building

Low Noise Reliable Output
Request a Quote
  • Overview
  • Specification
  • Partnership
  • Company
  • FAQ

Overview

Introduction

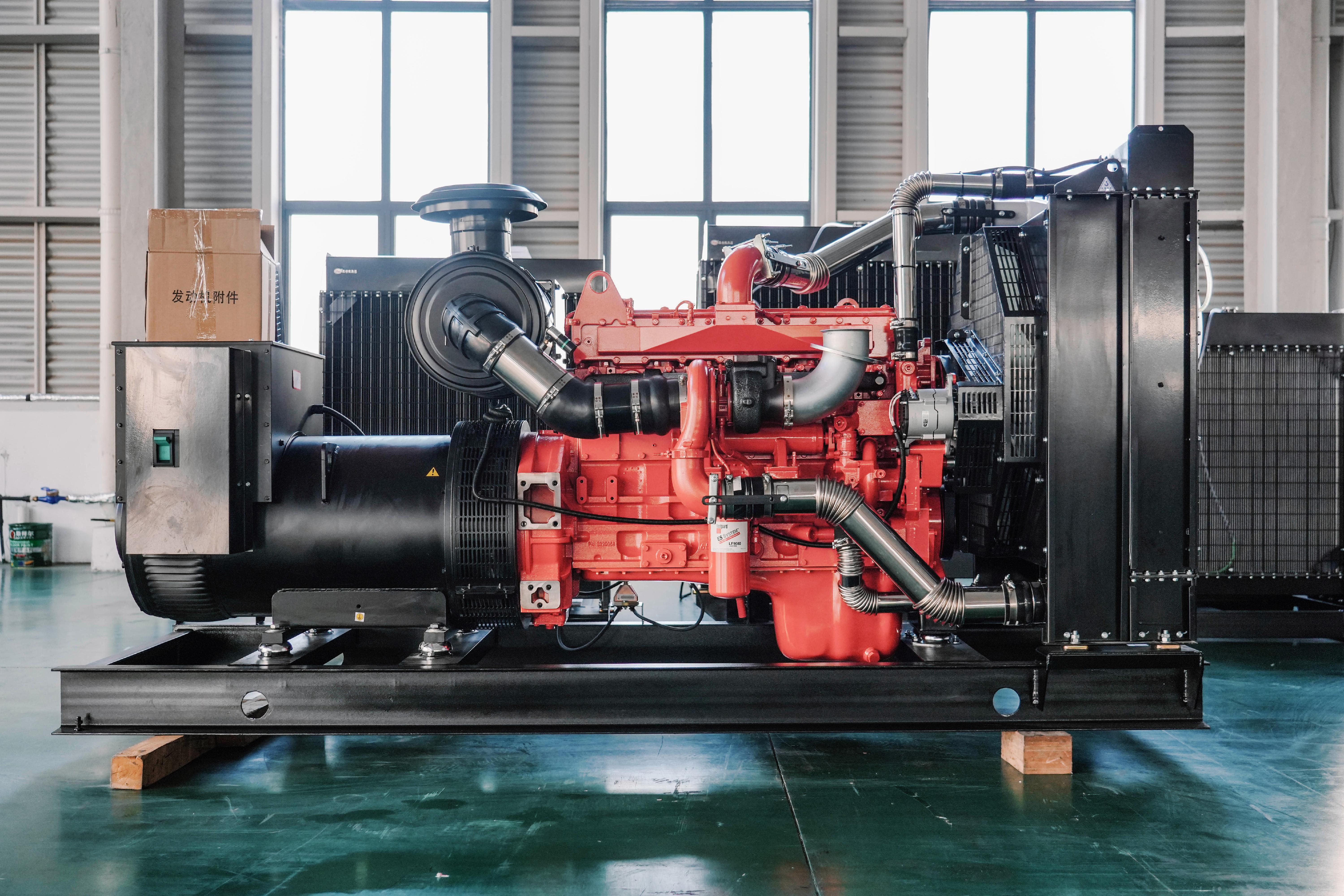

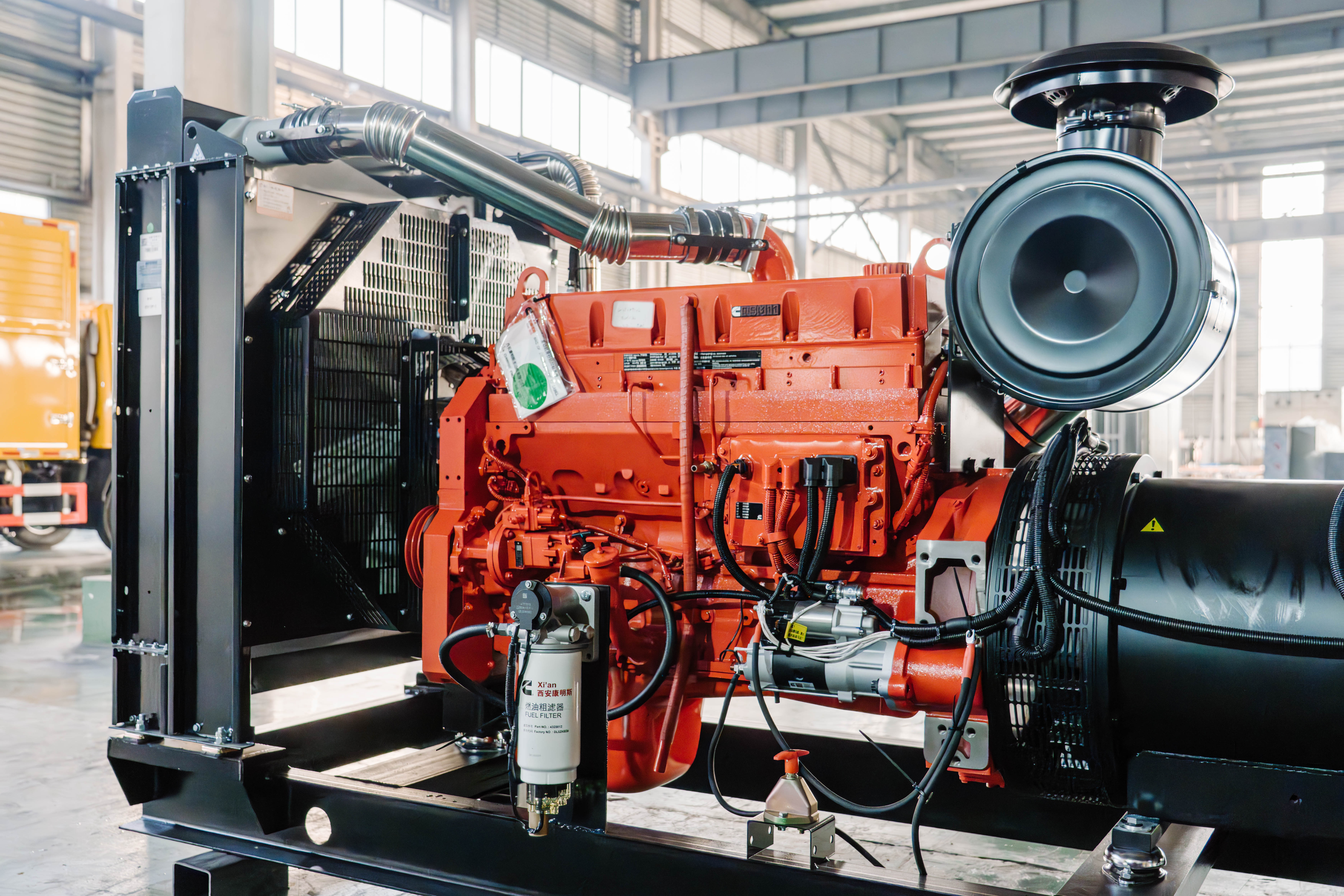

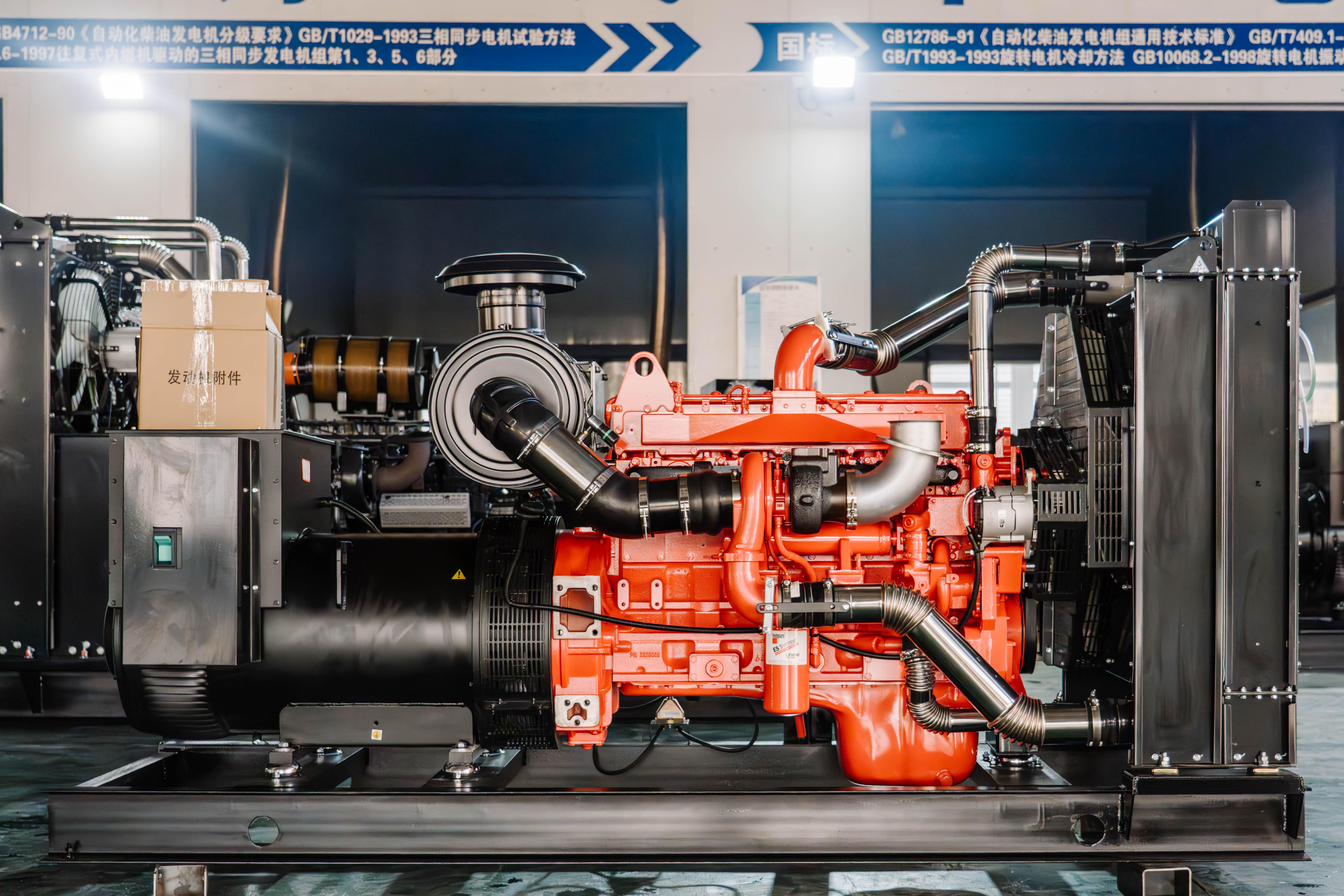

Xian Cummins National III Open-frame 300KW Diesel Generator is equipped with original Xian Cummins National III power (compatible with model MTA11-G3), with prime power 300KW, standby power 330KW and rated speed 1500r/min. It has strong power and up-to-standard emissions, meeting industrial power supply needs with both reliability and economy.

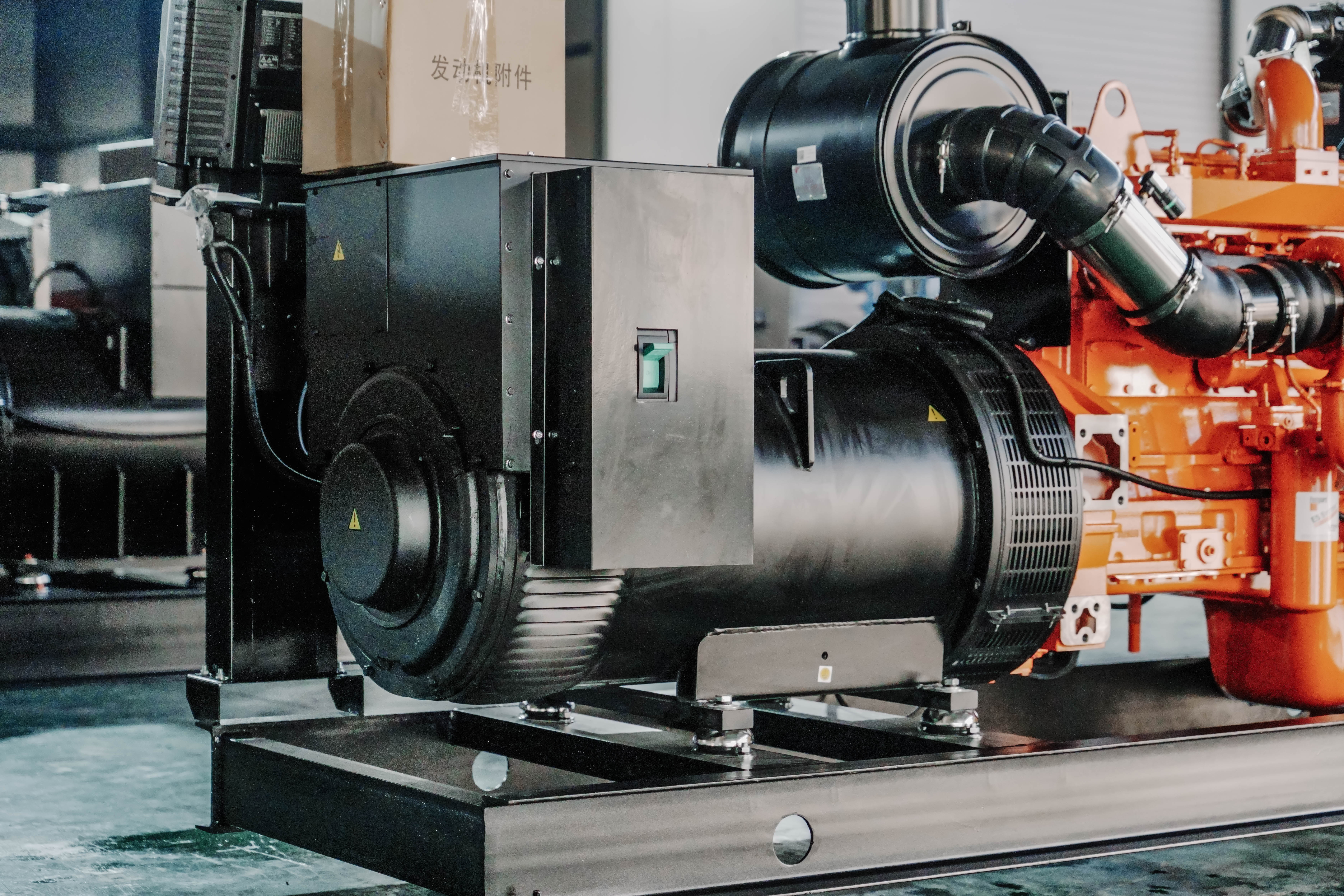

With an open-frame structure, the unit has a reference size of 3280×980×1580mm and weighs about 3300KG, featuring efficient heat dissipation and easy on-site maintenance and handling. Matched with a high-quality brushless three-phase AC synchronous generator, it adopts AVR automatic voltage regulation for stable voltage, with protection class IP23 and insulation class H, suitable for complex working conditions.

Adopting electronic speed regulation and 24V electric start, it starts quickly and reliably, with multiple protections such as overload and over-temperature. Suitable for factories, mines, construction sites and other scenarios, it relies on Cummins' brand guarantee for convenient operation and maintenance and easy access to accessories.

Specification

Specification

Diesel Generator Set - Basic Parameters

Model TP-C330
Prime Power of Set 300 (KW)
Weight 4544 (KG)
Standby Power of Set 330 (KW)
Open Frame Dimension 3300×1160×1630 (MM)
Soundproof Canopy Dimension 3300×1300×1900 (MM)
Rainproof Cover Dimension 3400×1600×1950 (MM)
Container Dimension 4200×2000×2400 (MM)
Mobile Trailer Dimension 3400×1750×2500 (MM)
Power Vehicle Dimension 5995×1880×2740 (MM)

Diesel Engine - Basic Parameters

Model QSM11-G3A
Brand Cummins
Cylinder Bore 140 (MM)
Prime Power 366 (KW)
Piston Stroke 152 (MM)
Standby Power 407 (KW)
Rotational Speed 1500 (R/MIN)
Rated Oil Consumption 1.00 (g/kw.h)
Number of Cylinders / Cylinder Structure 6 / L-type
Displacement 14.00 (L)
Cooling Method Fully Enclosed Water Circulation Forced Air Cooling
Speed Regulation Method Electronic Speed Regulation
Intake Method Turbocharging
Starting Method Electric Starting

Generator - Basic Parameters

Model JN330-14
Brand Torchpower
Generator Type Brushless Three-Phase AC Synchronous Generator
Prime Power 300 (KW)
Voltage Regulation Method AVR (Automatic Voltage Regulator)
Standby Power 330 (KW)
Protection Class IP23
Voltage 230/400 (V)
Wiring Method Three-Phase Four-Wire, Y-connection
Winding Material Pure Copper
Insulation Class Class H
Excitation Method Permanent Magnet Excitation

Partnership

Powerful Partnership


Unmatched Commitment

At the core of our business philosophy is our “Five Ones” principle, which represents our unwavering commitment to delivering outstanding value and success for our partners. By choosing to work with us, you are aligning yourself with a trusted partner who is dedicated to creating long-term, mutually beneficial relationships. Here’s how our approach ensures your success:

One Predictable Profit Contract
We understand that predictability is a key factor in making informed business decisions. Our contracts are designed to ensure clear, consistent, and guaranteed profits for our partners. With us, there are no hidden surprises or fluctuating terms—just a straightforward, transparent agreement that helps you manage your business with confidence.

One Zero-Worry Quality Standard
Quality is paramount in today’s competitive market. Our commitment to zero-worry quality means that we hold ourselves to the highest standards, rigorously testing each product to ensure it meets or exceeds industry expectations. From raw materials to the final product, we maintain strict quality controls to ensure that you never have to worry about defects or performance issues.

One Always-On Support Network
In business, challenges are inevitable, but they don’t have to be faced alone. Our 24/7 support network is always ready to assist, offering you peace of mind knowing that help is just a call or click away. Whether you need technical support, guidance, or help navigating any part of your partnership with us, our team is here to ensure your operations run smoothly.

One Solid Fortress for Mutual Growth
Success is built on strong foundations. Our focus is not just on providing you with high-quality products; we also prioritize building a solid partnership that will foster growth and expansion. By working together, we aim to create a platform for mutual success, ensuring that as your business grows, so does ours. Your progress is our priority, and we’re committed to helping you scale with confidence.

One Competitive Speed Ahead
In a fast-paced world, speed is key. Our streamlined operations and readiness to meet your needs ensure that you stay ahead of the competition. With ready stock and the ability to dispatch products within 24 hours, we ensure that you receive the products you need, exactly when you need them, so you can maintain a competitive edge in your market.

Why Partner with Us?

When it comes to forming successful partnerships, the advantages of working with us are clear:

  • Higher ROI, Direct Factory, Max Your Margin
    By sourcing directly from the factory, we eliminate middlemen, which maximizes your profit margins. This approach ensures that you are getting the best prices while maintaining exceptional product quality.

  • Real Power, 100% Load Tested, Guaranteed
    Every product we offer is 100% load tested, giving you peace of mind that each item is reliable and ready for the most demanding conditions. We guarantee the performance of every product, ensuring that you never have to worry about failures.

  • Global Service, 3600+ Local Support Points
    Our global service network consists of over 3,600 local support points, ensuring that no matter where you are, we are always within reach. This wide network enables us to provide localized service and support, reducing downtime and ensuring a smooth experience.

  • Expert Customization, Your Engineering HQ
    Customization is a key component of our offerings. Our engineering expertise allows us to create tailored solutions that meet your specific needs. From design to production, we work closely with you to develop products that align perfectly with your business goals.

  • Rapid Delivery, Ready Stock, 24H Dispatch
    We understand the urgency of business needs, which is why we maintain ready stock and offer 24-hour dispatch for fast and efficient delivery. This ensures that your products are delivered on time, so you can stay ahead of deadlines and meet customer demands.

By adhering to our “Five Ones” principle and offering exceptional value through reliability, quality, support, growth, and speed, we ensure that our partnership will not only meet but exceed your expectations.

Company

Company Information


Company

FAQ

FAQ

Q:How do I choose the right generator power?
A:Choose based on total load plus 20%—30% margin. For motor loads, consider startup current – select 3-5 times the rated power.

Q:What is the difference between prime power and standby power?
A:Prime power is for continuous use, allowing 10% overload for 1 hour every 12 hours. Standby power is for emergency use, usually no more than 200 hours per year.

Q:Does it support ATS automatic transfer?
A:Yes, optional ATS for auto start on power failure and auto stop on restoration.

Q:What is the noise level? Can it be used in residential areas?
A:Open type: 85-95dB(A)@7m. Silent type: 65-75dB(A)@7m. Silent models suit residential areas, hospitals, and hotels.

Q:What emission standards and certifications are available?
A:Available in National II/Ⅲ, EU Stage V, EPA Tier 4, etc. Common certifications include CE, ISO9001, EPA, UL, etc., depending on the target market.

Q:What is the maintenance schedule?
A:First oil change at 20 hours, then every 100–250 hours or every 6 months for oil and filters.

Q:What about warranty, payment, lead time, and MOQ?

A:Standard warranty 1 year or 1,000 hours, extendable. Payment: 30% deposit + 70% before shipment, or L/C at sight. Lead time: 15–25 days standard, 30–45 days customized. MOQ is usually 1 unit, OEM supported.

Q:Why your price is higher than others?

A:Some competitors quote fake low prices to attract orders. When you receive the goods, you will find the unit fails to reach the rated power and does not match what you ordered. You will waste your money in the end. Please do not be misled by extremely low prices.
