Heavy Duty Power Solution Mobile Emergency Power Supply Generator Vehicle for Construction & Infrastructure
· Easy Operation & Maintenance
· Heavy-Duty Power Solution
· Mobile Emergency Power Vehicle
· For Construction & Infrastructure
· Reliable On-Site Power
- Overview
- Specification
- Partnership
- Company
- FAQ
- Recommended Products

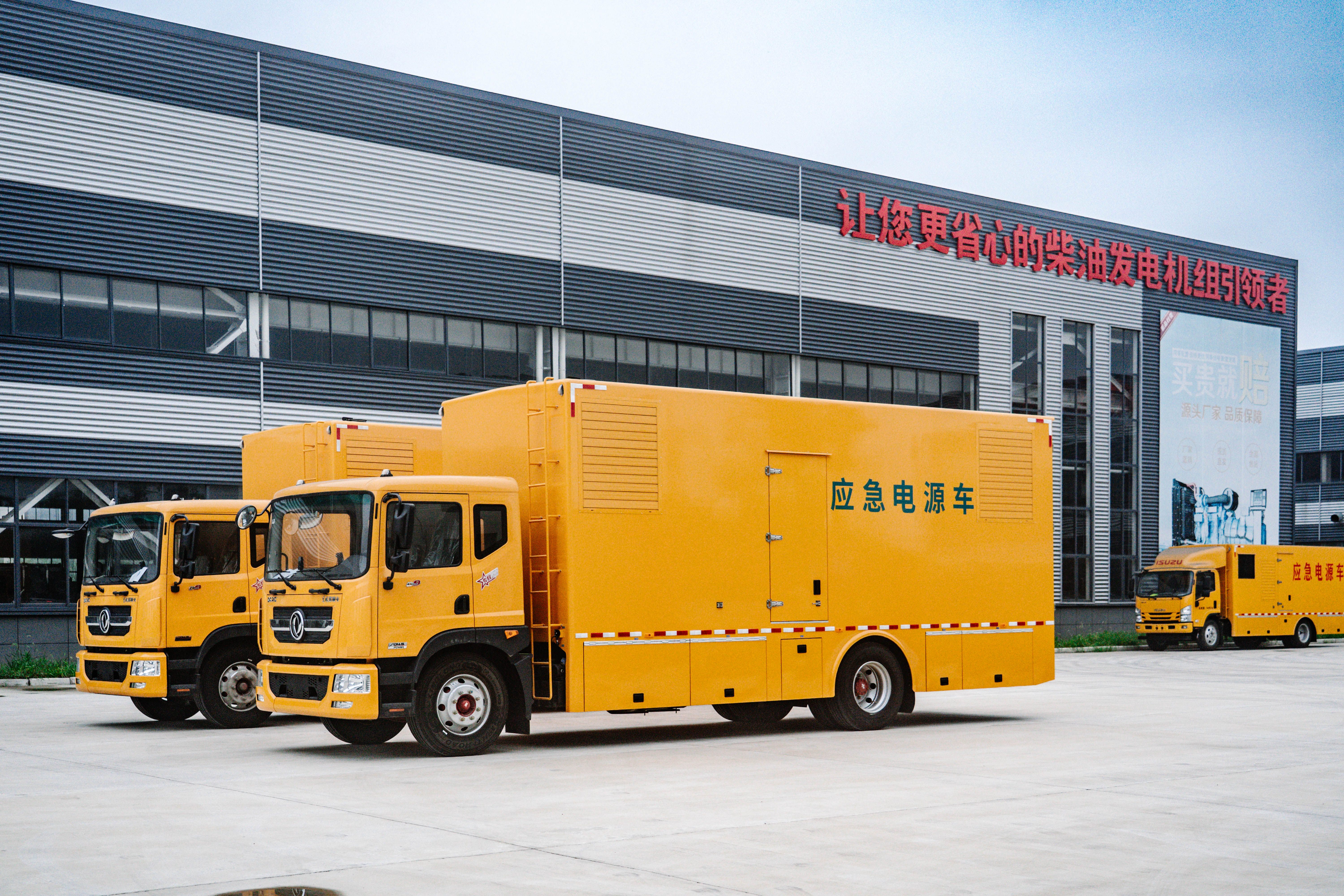

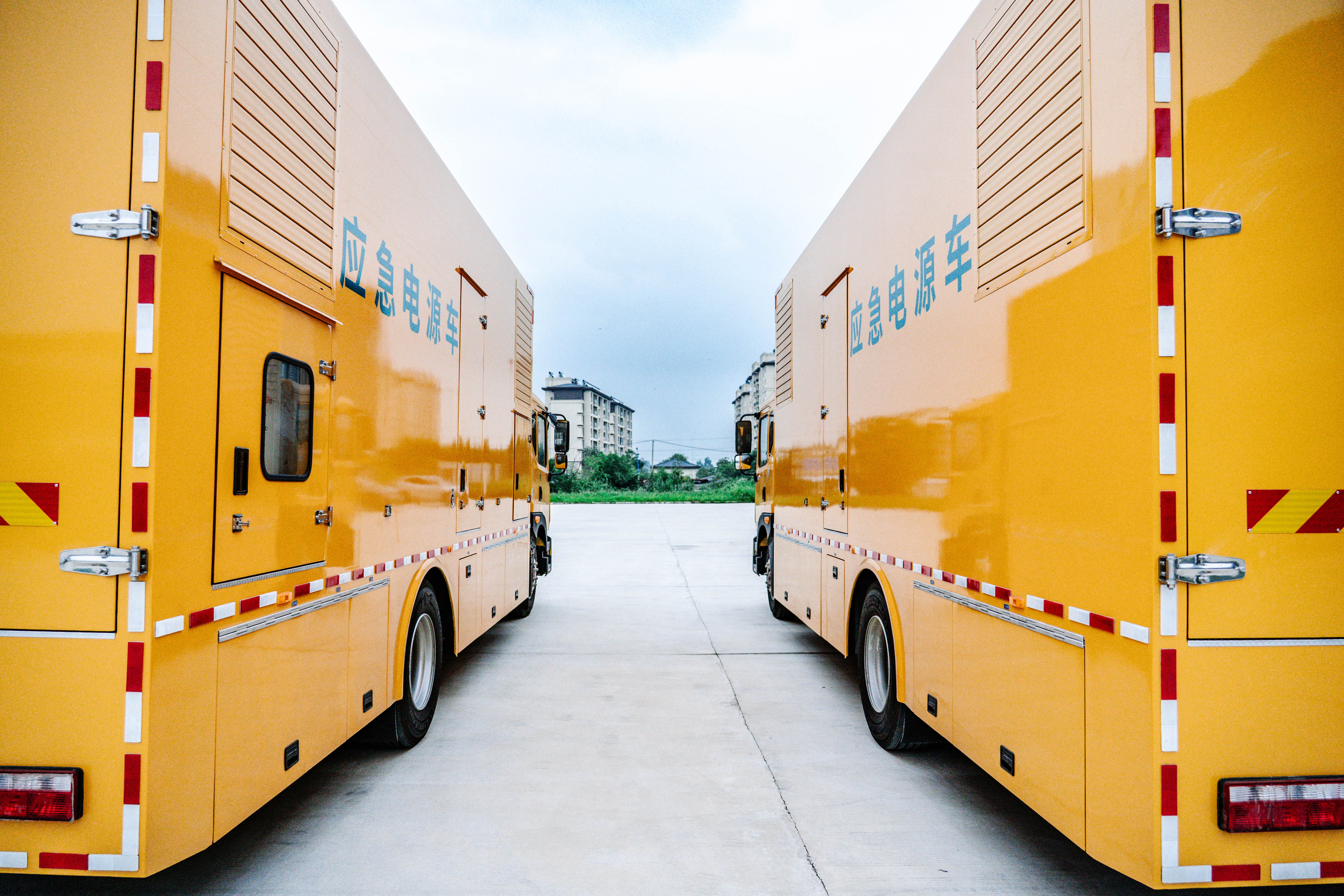

Diesel power supply vehicle is a mobile, efficient and stable emergency power supply equipment, equipped with a high-quality diesel generator set, with a prime power of 50KW-1200KW, and above. It can quickly respond to various emergency power supply needs, balancing mobility and practicality, and is widely used in municipal emergency, engineering construction, disaster relief, large-scale event guarantee and other scenarios.
Adopting a special chassis design, the vehicle has strong load-bearing capacity and excellent mobility, which can flexibly shuttle in various venues without fixed installation. It can start power supply quickly after arriving at the scene, greatly shortening the emergency response time. The unit is equipped with an efficient noise reduction system, with low operating noise, suitable for noise-sensitive scenarios such as residential areas and hospitals; it also adopts an intelligent control system to realize automatic start-stop, voltage regulation, fault alarm and other functions, which is easy to operate and reduces manual operation and maintenance costs.
The power supply vehicle has stable power supply performance and can operate continuously for a long time, adapting to the simultaneous power supply needs of high-power equipment. It can not only be used as an emergency backup power supply to ensure normal operation in case of sudden power failure, but also as a temporary prime power supply to solve the power problem in scenarios without fixed power supply such as field construction and large-scale activities, with both reliability and economy, meeting various customized mobile power supply needs.
Diesel Generator Set - Basic Parameters
| Vehicle Model | TPV-1 |
| Prime Power of Set | 500 (kW) |
| Weight | 17850 (kg) |
| Standby Power of Set | 550 (kW) |
| Power Truck Dimensions | 9730 × 2500 × 3860 (mm) |

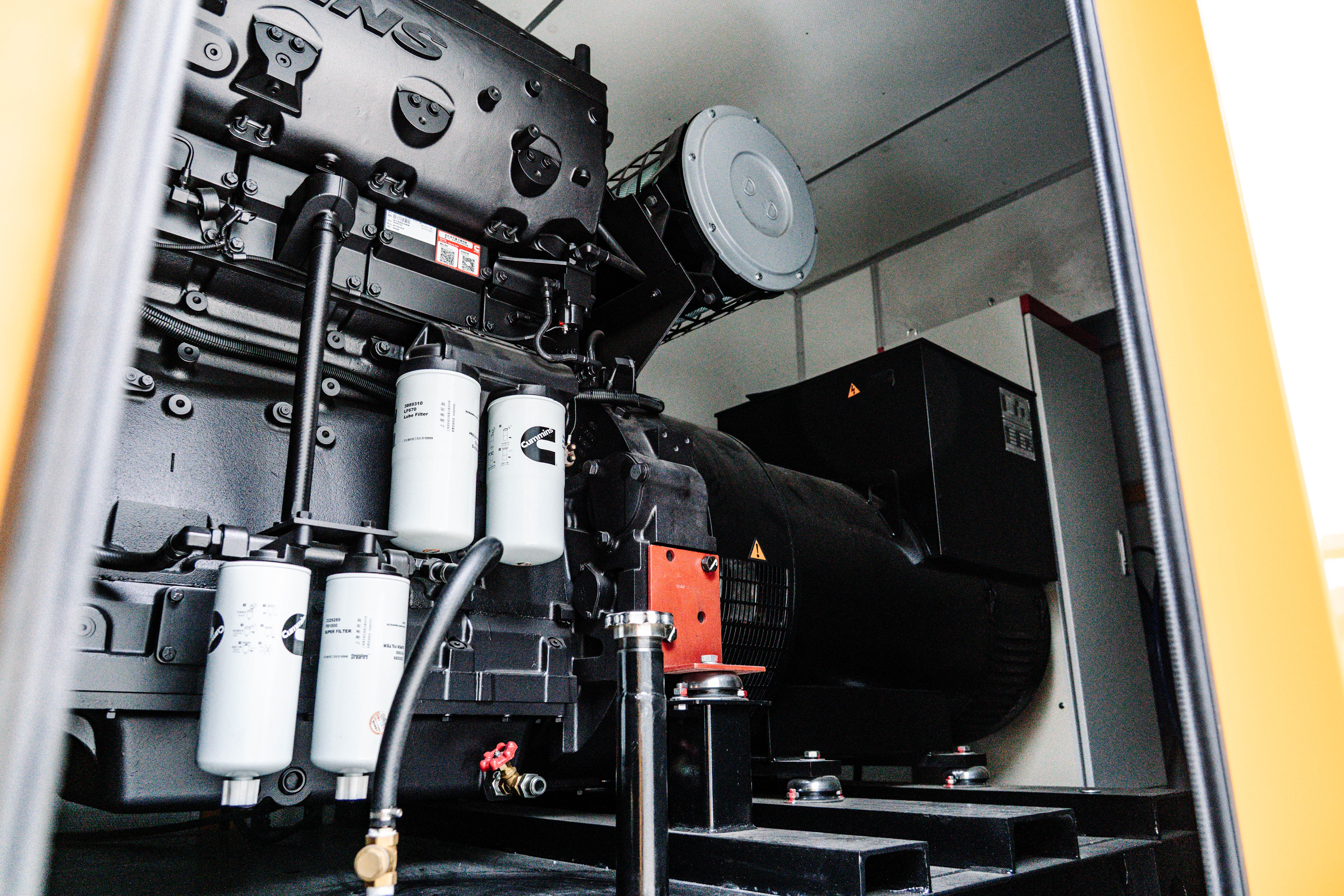

Diesel Engine - Basic Parameters
| Model | 6M33D633E310 |
| Brand | Weichai Baudouin - China III Emission Standard |
| Bore | 150 (mm) |
| Prime Power | 575 (kW) |
| Stroke | 185 (mm) |
| Standby Power | 633 (kW) |
| Rated Speed | 1500 (r/min) |
| Rated Fuel Consumption (Oil) | 1.00 (g/kW·h) |
| Number of Cylinders / Cylinder Structure | 6 / In-Line |
| Displacement | 19.60 (L) |
| Cooling Method | Fully Enclosed Water-Cooled with Forced Air Cooling |
| Governor Method | High Pressure Common Rail (HPCR) |
| Intake Method | Turbocharged |
| Starting Method | Electric Start |
Alternator - Basic Parameters
| Model | JN550 |
| Brand | Torchpower |
| Alternator Type | Brushless Three-Phase AC Synchronous Alternator |
| Prime Power | 500 (kW) |
| Voltage Regulation Method | AVR (Automatic Voltage Regulator) |
| Standby Power | 550 (kW) |
| Protection Class | IP23 |
| Voltage | 230/400 (V) |
| Wiring Method | Three-Phase Four-Wire, Y-Connection |
| Winding Material | Pure Copper |
| Insulation Class | Class H |
| Excitation Method | Brushless Self-Excitation |
